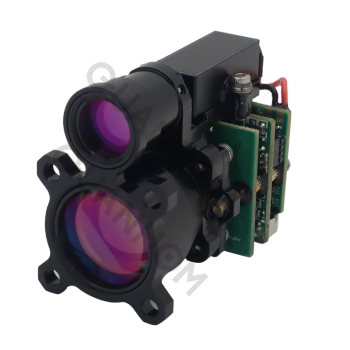

Laser Range Finder 9V-16V 1535nm LRF G1535 3S
- group name
- Laser Range Finder
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- LRF G1535 3S
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:15:55 GMT
Paramtents
Power Supply 9V-16V
Continuous Ranging Frequency 1-10Hz(adjustable)
Operating Temperature -40℃-+65℃
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Performance |
|||
|
Performance range [m]:
|
|
||
Continuous ranging frequency | adjustable from 1Hz to 10Hz | ||
Wavelength | 1535nm | ||
Laser divergence Angle | ≤0.5mrad | ||
Accuracy Rate | ≥98% | ||
Ranging accuracy | ≤±1m (RMS) | ||
Minimum range | ≤50m | ||
Ranging resolution | ≤30m | ||
Operating Temperature | -40℃～+65℃ | ||
Storage Temperature | -55℃～+70℃ | ||
Weight | ≤55g | ||
Size | ≤51.5mm×26mm×41.5mm | ||
Power Supply voltage | DC9V-16V | ||
Power | average power
consumption ≤1.5W, peak power consumption ≤5W | ||
Communication interface | RS422, 115200bps | ||
Rate of work | Average working rate≤1.5W, working efficiency≤5W | ||
|
file name
|
type |
download
|
||
PDF format |
|
|||
The laser rangefinder consists of an optical system, a laser, a drive circuit, a receiving circuit, a signal processing circuit, a system power circuit and an external data interface circuit.
The signal processing circuit receives the ranging command sent by the upper computer through the external data interface circuit, and then sends the control signal to the drive circuit. After receiving the control signal, the drive circuit injects an electrical pulse signal into the laser. The laser pulse laser output from the laser is sent to the detected target by the optical transmitting system, and and simultaneously the main wave collected by the receiving circuit is sent to the signal processing circuit after truing. Reflected back by the target, the laser signal is converged to the receiving circuit through the receiving optical system, and then sent to the signal processing circuit after amplification and truing. The signal processor receives the main wave and echo to realize data sampling, counting and calculation. After completing data processing, the signal processing circuit uploads the distance information to the upper computer, so as to complete a distance measurement.
The laser rangefinder is light in weight, small in size, simple in operation, fast and accurate, with the error only one fifth to several hundredths of other optical rangefinders. Therefore, it is widely used in terrain measurement, battlefield measurement, ranging of tanks, aircraft, ships and artillery to targets, measuring the altitude of clouds, aircraft, missiles, and artificial satellites, etc. It is an important technical equipment to improve the accuracy of tanks, aircraft, ships and artillery, and is also widely used in industrial measurement and control, mines, ports and other fields.
