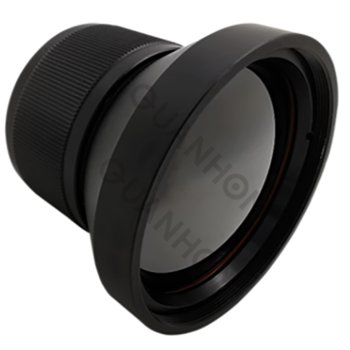

Manual Focus LWIR Lens 54mm f/1.0
- group name
- Manual LWIR Lens (1-FOV)
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- GLM5410ZHD
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:53:01 GMT
Paramtents
LWIR Lens 54mm f/1.0
Applications Security and Surveillance
Mechanical Interface Thread
Packging & Delivery
-
Min Order1 piece
Briefing
Uncooled Camera Motorized Focus LWIR Lens,can be applied to Security and Surveillance.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
25μm | 4.2° | 8.5° | 8.9° | 10.2° | / | / | / | / |
|
17μm
|
2.9°
|
5.8°
|
6.1° | 6.9° | 11.5° | 11.5° | / |
/
|
|
12μm
|
2.0°
|
4.1°
|
4.3° | 4.9° | 8.1° | 8.1° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
54
|
||
|
F/#
|
1.0
|
||
Average Transmission | ≥83% | ||
Focus Range | 3m-Infinity | ||
Wavelength | 8-12μm | ||
Format | Φ14 | ||
Mechanical |
|||
Interface | Thread | ||
|
Manual
|
||
|
|
||
|
Weight
|
|
||
Environmental |
|||
|
Operating Temperature
|
-40℃ to +60℃
|
||
|
Storage Temperature
|
-40℃ to +80℃
|
||
|
External Coating
|
DLC
|
||
Front Element Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
What are the advantages of GLM5410ZHD?
1. The front lens is coated with AR film to enhance the transmittance, the transmittance ≥83%.
2. Lens is small in size and light in weight.
3. There is a large effective imaging surface of φ 14.
4. The focusing range is 3m-infinity, which can observe the target at a close distance.
5. Able to work in all kinds of harsh environments.
6. Suitable for a variety of models of movement.
VIDEO
APPLICATIONS
Airborne
Homeland Security
Maritime & Naval Surveillance
Security & Surveillance
Thermal Imaging Body Temperature Screening
