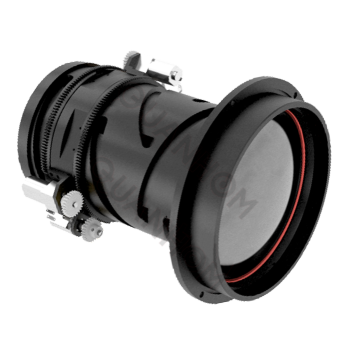

LWIR Continuous Zoom Lens 20-100mm f/0.85-1.2
- group name
- Continuous Zoom LWIR Lens
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- GCZ52012K
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 20:58:55 GMT
Paramtents
GCZ52012K 20-100mm f/0.85-1.2
Applications Security and Surveillance
Focus Mechanism Motorized
Packging & Delivery
-
Min Order1 piece
Briefing
Continuous Zoom Lens.can be applied to Thermal Imaging Body Temperature Screening.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
12μm | / | 2.2°-11° | / | / | / | / | 7°-34.2° |
35μm | / | / | / | 7.7°-37.1° | / | / | / |
25μm | / | 4.6°-22.6° | / | 5.5°-27° | / | / | / |
|
17μm
|
/
|
/
|
3.3°-16.3° | / | / | 6.2°-30.4° | 9.9°-47° |
Optical |
|||
|
Focal Length[mm]
|
20-100
|
||
|
F/#
|
0.85-1.2
|
||
|
Wavelength
|
8-12μm
|
||
Image Dimension | Φ15.5 | ||
Mechanical |
|||
|
Motorized
|
||
|
|
||
|
Weight
|
|
||
Electrical & Communications |
|||
|
Power Input
|
|
||
Communications | NA | ||
Environmental |
|||
|
Operating Temperature
|
-40℃ to +60℃
|
||
|
Storage Temperature
|
-40℃ to +80℃
|
||
|
External Coating
|
DLC/AR
|
||
Front Element Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
What are the advantages of lens GCZ52012KD?
1. The lens supports HD resolution cores.
2. The lens can have a clear image in the focal length range of 20mm-100mm.
3. The lens has a ready-made mounting flange for easy installation.
4. The lens supports cores control and external circuit board control.
The lens in front of this lens is exposed for long time to be able to wear away seriously.
The surface of the first lens of our sub-lens is covered with a DLC film, which is highly hard and can well protect the first lens while having almost no effect on the transmittance of radiation, thereby increasing the service life of the lens.
VIDEO
APPLICATIONS
Homeland Security
Maritime & Naval
Security & Surveillance
