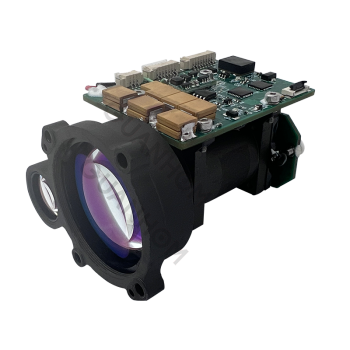

Laser Range Finder ≤70.5×60×46mm/≤120g LRF G1535 06
- group name
- Laser Range Finder
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- LRF G1535 06
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:43:52 GMT
Paramtents
Power Supply 9V-36VDC
Continuous ranging frequency 1-10Hz(adjustable)
Operating Temperature -40℃-+60℃
Storage Temperature -45℃-+70℃
Packging & Delivery
-
Min Order1 piece
Briefing
The laser rangefinder can detect the target distance and transmit the measured distance to the host computer.
Detailed
- Specification
- download file
- FAQ
- video
- application
Specification
Performance |
|||
|
Performance range [m]:
|
|
||
Wavelength | 1535nm | ||
Laser divergence angle | ≤0.4mrad | ||
Continuous ranging frequency | 1-10Hz | ||
Range accuracy | ≤±2m (RMS) | ||
Accuracy rate | ≥98% | ||
Ranging resolution | ≤50m | ||
Operating temperature | -40℃～+65℃ | ||
Product weight | ≤120g | ||
Product size [mm] | ≤70.5*60*46mm | ||
Power supply | 9-36VDC | ||
Power | Average power consumption ≤1.5W, peak power consumption ≤5W | ||
Download file
|
file name
|
type |
download
|
||
PDF format |
|
|||
Download file
FAQ
- What is the composition and working principle of the laser rangefinder?
The laser rangefinder consists of an optical system, a laser, a drive circuit, a receiving circuit, a signal processing circuit, a system power circuit and an external data interface circuit.
The signal processing circuit receives the ranging command sent by the upper computer through the external data interface circuit, and then sends the control signal to the drive circuit. After receiving the control signal, the drive circuit injects an electrical pulse signal into the laser. The laser pulse laser output from the laser is sent to the detected target by the optical transmitting system, and and simultaneously the main wave collected by the receiving circuit is sent to the signal processing circuit after truing. Reflected back by the target, the laser signal is converged to the receiving circuit through the receiving optical system, and then sent to the signal processing circuit after amplification and truing. The signal processor receives the main wave and echo to realize data sampling, counting and calculation. After completing data processing, the signal processing circuit uploads the distance information to the upper computer, so as to complete a distance measurement.
- What are the applications of laser rangefinder?
The laser rangefinder is light in weight, small in size, simple in operation, fast and accurate, with the error only one fifth to several hundredths of other optical rangefinders. Therefore, it is widely used in terrain measurement, battlefield measurement, ranging of tanks, aircraft, ships and artillery to targets, measuring the altitude of clouds, aircraft, missiles, and artificial satellites, etc. It is an important technical equipment to improve the accuracy of tanks, aircraft, ships and artillery, and is also widely used in industrial measurement and control, mines, ports and other fields.
