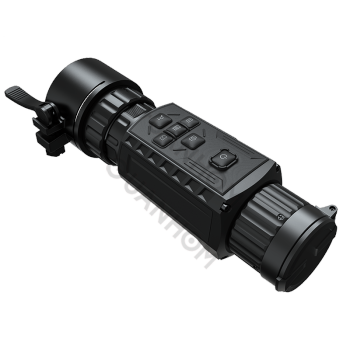

TIRC Thermal Imaging Riflescope clipon Series
- group name
- TIR Thermal Imaging Riflescope
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- TIRC Series
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 18:03:14 GMT
Paramtents
Weight 532g/583g
Resolution 384x288/640x512
Focal Length 35mm/50mm
Packging & Delivery
-
Min Order1 piece
Briefing
The thermal imaging riflescope is an all-weather thermal imaging sight.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
Thermal imaging parameters |
|||
Detector model | TIRH35-3812 |
TIRH50-6412
|
|
Resoiution | 384x288 | 640x512 | |
Image Sensor | Uncooled Focal Plane Arrays | ||
Response waveband | 8-14μm | ||
Frame rate | 50Hz | ||
NETD | ≤35mK(..........0,0.25℃) | ||
Pixel pitch | 12μm | ||
Focal length | 35mm | 50mm | |
Detection distance | 1800mm | 2600mm | |
IFOV | 0.343mrad | 0.24mrad | |
Field of view | 7.5°x5.7° | 8.78°x7.03° | |
Min.focusing distance | 3.5m | 5m | |
Aperture | F1.0 | ||
Magnification | 1x | ||
Image display |
|||
Display | 1024x768. 0.39 inch.OLED | ||
Palettes | Black hot. White hot.Red hot.Fusion | ||
Exit pupil | 22mm | ||
Eye relief | 10mm | ||
System functionality |
|||
Record video | On-board video recording | ||
Capture Snapshot | Yes | ||
Standby mode | Yes | ||
Non-uniform Correction | Auto,External Correction | ||
Storage capacity | Built-in EMMC(64GB) | ||
The picture within the picture | Yes | ||
Bad spot correction | Yes | ||
Hot spot | Yes | ||
Hot spot tracking | Yes | ||
Electron zoom | 1X,2X,4X,8X | ||
Cross display | Yes | ||
Ranging function | No | ||
Power supply |
|||
Battery type | Replaceable Applicable type:CR123A,RCP123A | ||
Battery Operating Time | 7h(25℃，with hotspot off) | 6.5h(25℃，with hotspot off) | |
Battery Capacity display | Yes | ||
Anti-reverse Battery commection | Yes | ||
Overvoltage protection | Yes | ||
Type-C Power | 5VDC,2A Supports external power supply | ||
Common parameter |
|||
Work Temperature/Humidity | -20℃ to 55℃(-4°F to 131°F) | ||
Protection level | IP67 | ||
Vibration&Shock | 750g/1ms | ||
Dimension | 179x68x63mm | 192x76x69mm | |
Weight | 532g without eyepiece and batteries | 583g without eyepiece and batteries | |
Interface | Yes | ||
Download document
|
file name
|
type |
download
|
||
|
TIRC Thermal Imaging Riflescope clipon Series
|
PDF |
|
||
FAQ
What are the features of TIRH series handheld thermal monocular cameras?
