Fixed Athermalized IR Lens 20mm f/1.1
- group name
- Fixed Athermalized LWIR Lens (1-FOV)
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- GLA2011
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:58:10 GMT
Paramtents
LWIR Lens 20mm f/1.1
Applications Security and Surveillance
Mechanical Interface Thread
Packging & Delivery
-
Min Order1 piece
Briefing
Fixed Athermalized IR Lens 20mm f/1.1,can be applied to Security and Surveillance.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
|
12μm
|
5.5°
|
11.0°
|
11.5° | 13.1° | 21.7° | 21.7° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
20
|
||
|
F/#
|
1.1
|
||
Wavelength | 8-12μm | ||
Format | Φ14 | ||
Mechanical |
|||
|
Fixed Athermalized
|
||
|
|
||
|
Weight
|
|
||
Environmental |
|||
|
Operating Temperature
|
-45℃ to +55℃
|
||
|
Storage Temperature
|
-55℃ to +70℃
|
||
External Coating | DLC/AR | ||
Sealing | IP67 | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
What are the differences between GLA2011 and GLA2011ZA?
GLA2011 and GLA2011ZA are structurally different.
GLA2011 COATED DLC/AR film,GLA2011ZA coated AR film.

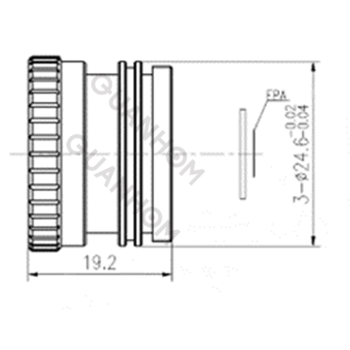

GLA2011 screw mounting M23.4*0.75-6g 4.1mm,GLA2011ZA is screw mounting.
APPLICATIONS
Airborne
Enhanced Vision
Hand-held Thermal Imaging Devices
Homeland Security
Maritime & Naval
Security & Surveillance
