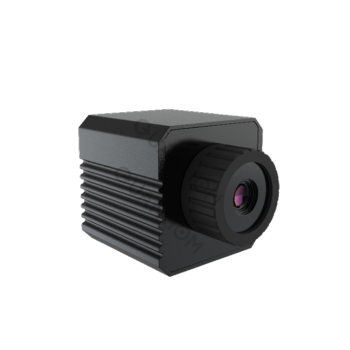

Infrared Thermal Temperature Camera 384x288
- group name
- Infrared Thermal Camera
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- TTC738
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Wed, 04 Dec 2024 00:42:35 GMT
Paramtents
Infrared Lens Focal Length 7.6mm
Resolution 384*288
Temperature measurement range 28-45℃
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Thermal Module Parameters |
|||
Image Sensor | VOx Uncooled Focal Plane Arrays |
||
Max. Resolution | 384 × 288 |
||
Response Waveband | 8 μm to 14 μm | ||
NETD | <70 mK (@30°C), F# = 1.0 | ||
Lens (Focal Length) | 7.6mm | ||
Field of View | 50.0° × 37.1° | ||
F # | F/#1.0 | ||
Frame Rate | 25 Hz | ||
Temperature
Measurement Range | 28°C-45°C | ||
Ethernet port | 100Mbit/s, network cable length 1m, bending resistance 2 million times | ||
Application Programming Interface | Support 16/32bit 384*288 pixels temperature data output | ||
System Parameters |
|||
Mounting | 2-M3 Threaded interface
1/4” - 20 UNC Tripod mount | ||
Power | DC10-30V |
||
Power Consumption | 2.3 W | ||
Operating Temperature | From -10°C to +50°C; Humidity: ＜ 95% RH |
||
Ambient Temperature | 20 to 35°C | ||
Protection Level | IP66 | ||
Shell Material | Aluminum Alloy |
||
Weight | 320g | ||
Dimensions | 84.9mm x54mm x 54mm | ||
|
file name
|
type |
download
|
||
PDF |
|
|||
There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:
1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused；
2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;
3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.
There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:
1. Replace the USB port, which may be incompatible with the data cable；
2.Replace the data cable，maybe the data cable is not compatible with the computer or the cable data is wrongly selected；
3. Confirm the wiring of the module or the control board, maybe the wiring is loose；
4.Module or control board hardware problem, replace the hardware.
