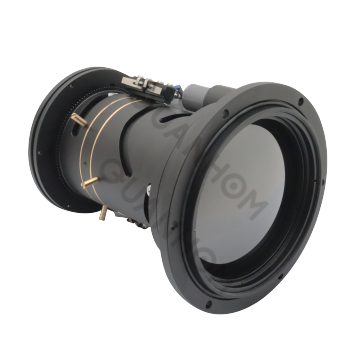

Auto Focus Infrared Lens 25-105mm f/1.2-1.6
- group name
- Continuous Zoom LWIR Lens
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- GCZ25-10516FD
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 21:26:13 GMT
Paramtents
LWIR Lens 25-105mm f/1.2-1.6
Applications Security and Surveillance
Focus Mechanism Motorized
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
25μm | 2.2°-9.1° | 4.4°-18.2° | 4.6°-19.1° | 5.2°-21.7° | / | / | / | / |
|
17μm
|
1.5°-6.2°
|
3°-12.4°
|
3.1°-13° | 3.6°-14.9° | 5.9°-24.6° | 5.9°-24.6° | / |
/
|
|
12μm
|
1°-4.4°
|
2.1°-8.8°
|
2.2°-9.2° | 2.5°-10.5° | 4.2°-17.5° | 4.2°-17.5° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
25-105
|
||
|
F/#
|
1.2-1.6
|
||
|
Wavelength
|
8-12μm
|
||
Average Transmission | ≥80% | ||
Focus Range | 3m-Infinity | ||
Mechanical |
|||
Interface | Flange | ||
|
Motorized
|
||
|
|
||
|
Weight
|
|
||
Electrical & Communications |
|||
|
Power Input
|
|
||
Environmental |
|||
|
Operating Temperature
|
-25℃ to +60℃
|
||
|
Storage Temperature
|
-45℃ to +85℃
|
||
|
External Coating
|
DLC
|
||
Front Element Sealing | IP67 | ||
|
file name
|
type |
download
|
||
PDF |
|
|||
There are many reasons why the lens autofocus is not clear; the main reasons are as follows which can be checked one by one:
1. During the focusing process, if there is a large moving target in the lens screen (occupying more than 1/3 of the picture), just refocus;
2. If the lens is used for a long time, and the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, adjust the module or control board parameters to make the focus clear again;
3. For hardware problems such as the potentiometer not working, replace the hardware that does not work.
There are many reasons why the lens control board and the computer cannot be connected; the main reasons are as follows which can be checked one by one:
1. Replace the USB port, which may be incompatible with the data cable;
2. Replace the data cable, which may be incompatible with the computer or of the wrong type;
3. Check if the wiring of the module or the control board is loose;
4. For module or control board hardware problems, replace the hardware.
