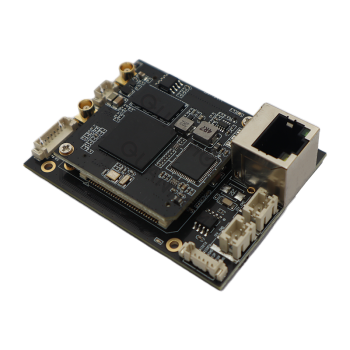

Mini SDI+CVBS Code Plate (asynchronously work)
- group name
- LWIR Thermal Camera Module
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- K10
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Thu, 21 Nov 2024 17:52:40 GMT
Paramtents
Model K10 mini code plate
Input 1 channel SDI signal, 1 channel CVBS signal input
Output 12V DC out，RS422/RS485
Dimensions 67mm x 50mm x 20mm (LxWxH)
Weight 38g
Power 12V~2A
Power Consumption 4W
Operating temperature -20℃ to+60℃
Operating humidity <90%, non-condensing
Packging & Delivery
-
Min Order1 piece
Briefing
A professional SDI and CVBS signal video coding product. It supports that 1 SDI signal and 1 CVBS signal asynchronously work.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
Video |
|||
Input resolution | 1920x1080p/1280x720p/720*576i/640*480i or other resolutions | ||
|
Encoding standard
|
H.265 / H.264
|
||
|
Encoding level
|
H.265 MAIN PROFILE， H.264 BASELINE PROFILEH.264 MAIN PROFILE， H.264 HIGH PROFILE
|
||
|
Coded size
|
320*180~1920*1080 (customizable)
|
||
Video bit rate | CBR/VBR
bit rate control 16KBIT/S~20MBIT/S | ||
Video
frame rate | 5~60 frames | ||
OSD | Text,
picture | ||
Audio |
|||
|
1 channel audio and video interface (support
audio gain)
|
||
|
|
||
|
Audio
code rate
|
|
||
Sampling rate | Default | ||
System |
|||
|
Network
protocol
|
Support
HTTP, RTSP, RTMP, UDP, RTP, multicast, unicast, HLS, ONVIF protocol, GB28181 protocol,
FTP
|
||
Configuration management | Support IE configuration, remote upgrade | ||
General |
|||
|
Power
|
12V~2A
|
||
|
Power consumption
|
4W
|
||
|
Dimensions
|
67mm
x 50mm x 20mm (LxWxH)
|
||
Operating
temperature | -20℃ to +60℃ | ||
Operating
humidity | <90%,
non-condensing | ||
Weight | 38g | ||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
- What is the difference between ITH3812Mini and other Infrared Thermal Camera module?
1. ITH3812Mini supports OLED driver.
2. It supports external keyboard.
3. It supports menu options.
4. Have no auto focus function.
- What are the main application scenarios of this thermal Image Core? Which lenses can be matched?
1. The Infrared thermal imaging camera of ITH3812Mini mainly used for outdoor observation machine, UAV, etc.
2. Many models of lenses can match this module, for example athermalized infrared lenses, manual infrared lenses.
