FIxed Athermalized IR Lens 60mm f/1.2
- group name
- Fixed Athermalized LWIR Lens (1-FOV)
- Min Order
- 1 piece
- brand name
- Quanhom Optronics
- model
- GLA6012ZD
- Nearest port for product export
- Shanghai, Ningbo, Tianjin, Khorgos
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, D/P D/A, PayPal, Westem Union
- update time
- Fri, 22 Nov 2024 09:46:26 GMT
Paramtents
LWIR Lens 60mm f/1.2
Applications Security and Surveillance
Packging & Delivery
-
Min Order1 piece
Briefing
Fixed LWIR Lens 60mm f/1.2 ,can be applied to Enhanced Vision.
Detailed
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
|
HFOV
|
160x120
|
320x240
|
336x256 | 384x288 | 640x480 | 640x512 | 1024x768 |
1280x1024
|
|
17μm
|
2.6°
|
5.2°
|
5.5° | 6.2° | 10.4° | 10.4° | / |
/
|
|
12μm
|
1.8°
|
3.7°
|
3.8° | 4.4° | 7.3° | 7.3° | / |
/
|
Optical |
|||
|
Focal Length[mm]
|
60
|
||
|
F/#
|
1.2
|
||
Wave Length | 8-12μm | ||
Format | Φ14 | ||

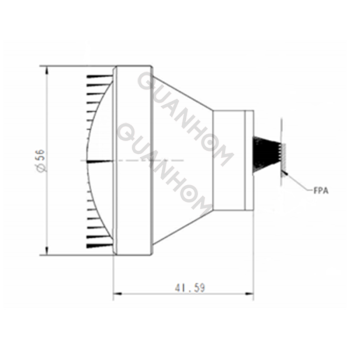

Mechanical |
|||
|
Fixed Athermalized
|
||
Interface | Thread | ||
|
|
||
|
Weight
|
|
||
Environmental |
|||
Sealing | IP67 | ||
Operating Temperature | -40℃ to +60℃ | ||
Storage Temperature | -45℃ to +65℃ | ||
|
External Coating
|
AR
|
||
Download document
|
file name
|
type |
download
|
||
PDF |
|
|||
FAQ
What are the features of GLA6010K lens?
Support hd movement, a larger focal length and a smaller size，Threaded connection is easy to install on all kinds of equipment, can work in all kinds of harsh environment，The coated lens surface not only receives more radiation but also better protects the lens from wear and tear, thus increasing the lens life.
APPLICATIONS
Airborne
Enhanced Vision
Hand-held Thermal Imaging Devices
Maritime & Naval Surveillance
Security & Surveillance
Thermal Imaging Body Temperature Screening
